870H x 570D x 400W (includes 150mm legs)

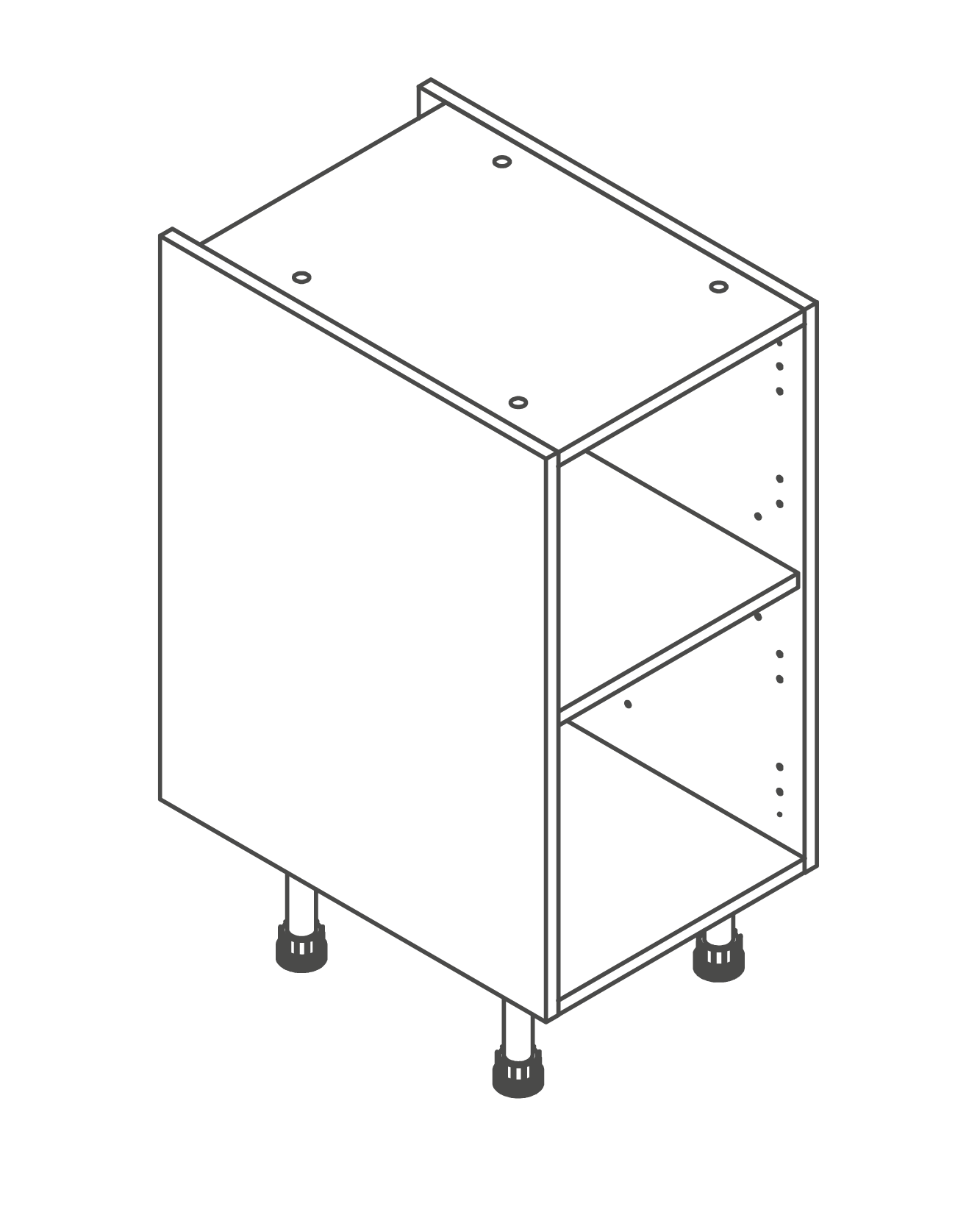

400mm Single Base Unit
- 18mm textured unit
- Clicbox tool-less assembly
- 1mm ABS edging on leading edges
- 8mm Solid back panel
- 49mm Service void
- 1x18mm Adjustable shelf 3 possible heights
- Hinge plate positions are centred 100mm top/bottom
- Hinge plate positions are pre drilled for euro screws
- Hinge hole door drilling 98mm top/bottom
Door size options:
- Door 1x715Hx396W
- Drawerline 1x140Hx396W+1x570Hx396W
